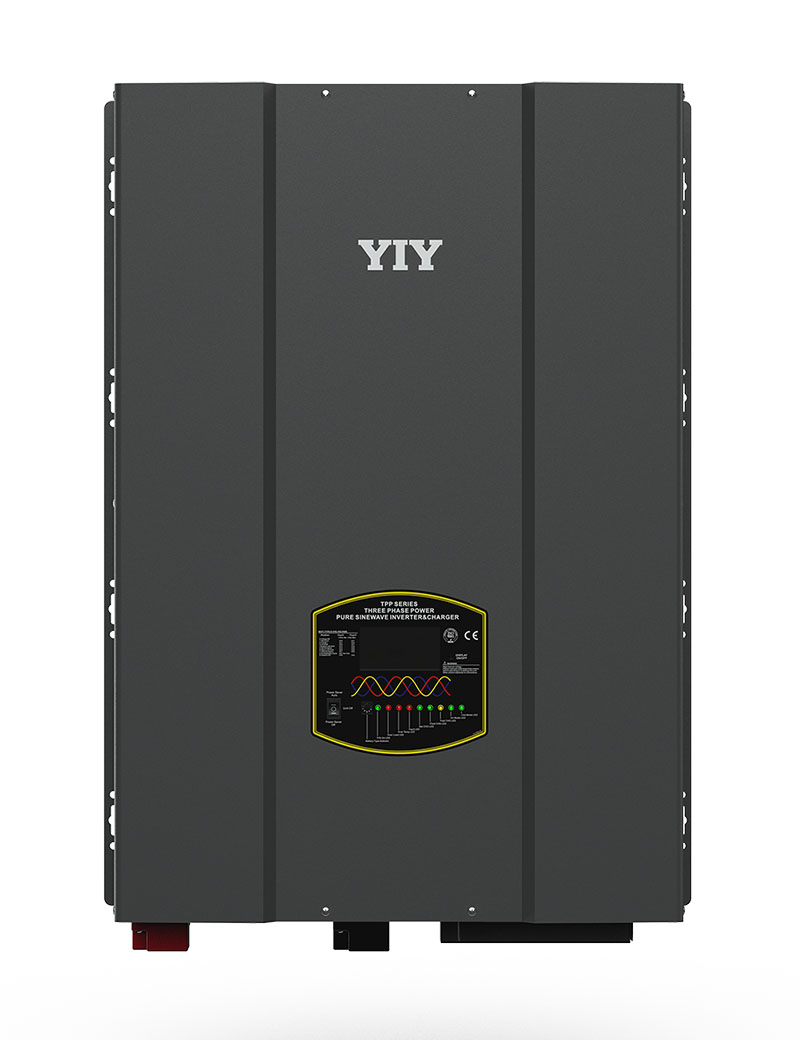

Key Features
- High output capacity up to 6KW.
- Unbalance Load Acceptable Idle Consumption Search Mode, less than 100W when Power Saver On.
- DC input voltage 12VDC / 24VDC / 48VDC.
- Powerful charge rate max charge current up to 450A (150A*3).
- Intelligent commnication port RS 232, RS 485, CAN port.
- Advanced MPPT solar charger controller Available.
- LED + LCD Display.
- Remote control optional (LED or LCD remote)
- Connection mode: 3-phase 4-wire / 3-phase 3-wire.
- AC Voltage: 3AC / N 400V / 207V.
- DC Voltage: 48VDC.
- Remote Control Seletable (RJ11 port / RJ45 port).
- UItra Low THD, less than 3% under full linear load (battery low).
- 13Vdc battery Recover Point, Dedicated for Renewable Energy Systems.
- BTS Seletable.
Technical Parameters
Model | 6KW |
Continuous Output Power | 6000W |
Surge Rating(20s) | 18000W |
Capable of Starting Electric Motor | 6HP |
Unbalance Load Acceptable | 100% |
DC Input Voltage | 48.0Vdc |
Output Waveform | Pure Sine wave/Same as input (Bypass mode) |
Nominal Efficiency | 89% (Peak) |
Line Mode Efficiency | >95% |
Power Factor | 0.9-1.0 |
Connection mode | 3-phase 4-wire system+Gnd |
Output voltage rating | 3AC / N 400V / 207V |
Output phase voltage | 120 / 230VAC |
Output Voltage Regulation | ±10% RMS |
Output Frequency | 50/60HZ ±0.3Hz |
Short Circuit Protection | Yes, Current Limit Function (Fault after 60ms) |
Typical transfer Time | Typical 6-8ms,10ms (Max) |
THD | <3% Linear Loac |
Nominal Input Voltage | 48.0Vdc |
Minimum Start Voltage | 42.0Vdc/ 44.0Vdc |
Low Battery Alarm | 42.0Vdc /44.0Vdc |
Low Battery Trip | 40.0Vdc/ 42.0Vdc |
High Voltage Alarm & Fault | 64.0Vdc |
High DC Input Recovery | 62.0Vdc |
Low Battery Voltage Recover | 52.0Vdc |
Idle Consumption- Search Mode | <100W when Power Saver On |
Input Voltage Range | Narrow: 96-132VAC / 184~253VAC; Wide: 70-135VAC70-135VAC / 140-270VAC; |
Input Frequency Range | Narrow: 47-55D.3Hz for 50Hz. 57-65D.3Hz for 60Hz Wide: 40-70D.3Hz for 50Hz/60Hz |
Output Voltage | Same as input |
Charger Breaker Rating(230Vac) | 10A |
Charger Breaker Rating(120Vac) | 20A |
Max Charge Rate | 20A*3 |
Power Factor | 0.97 MAX |
Over Charge Protection Shutdown | 62.8Vdc |
Battery type | Fast Vdc |
Gel U.S.A | 14,0 |
A.G.M 1 | 14,1 |
A.G.M 2 | 14,6 |
Sealed Lead Acid | 14,4 |
Gel Euro | 14,4 |
Open Lead Acid | 14,8 |
Calcium | 15,1 |
De-sulphation | 15.5 for 4hrs |
Remote Control | Yes. Optional LED/LCD |
Input Voltage Waveform | Sine wave (Grid or Generator) |
Nominal Voltage | 120Vac |
Low Voltage Trip | 70V/96Vac |
Low Voltage re engage | 75V/100Vac |
High Voltage Trip | 130Vac |
High Voltage re engage | 135Vac |
Max Input AC Voltage | 150Vac |
Nominal Input Frequency | 50Hz or 60Hz (Auto detect) |
Low Freq Trip | Narrow: 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz Wide: 40±0.3Hz for 50/60Hz |
Low Freq re engage | Narrow: 48±0.3Hzfor 50Hz, 58±0.3Hzfor 60Hz Wide: 42±0.3Hz for 50Hz/60Hz |
High Freq Trip | Narrow: 55±0.3Hz for 50Hz, 65 ±0.3Hz for 60Hz Wide: 70±0.3Hz for 50/60Hz |
High Freq re engage | Narrow: 54 ±0.3Hz for 50Hz, 64 ±0.3Hz for 60Hz Wide: 68±0.3Hz for 50/60Hz |
Output Short circuit protection | Circuit breaker |
Bypass breaker rating(230Vac) | 10A |
Bypass breaker rating(120Vac) | 20A |
Communication methods | RS32/458/CAN |
Display | LED+LCD |
